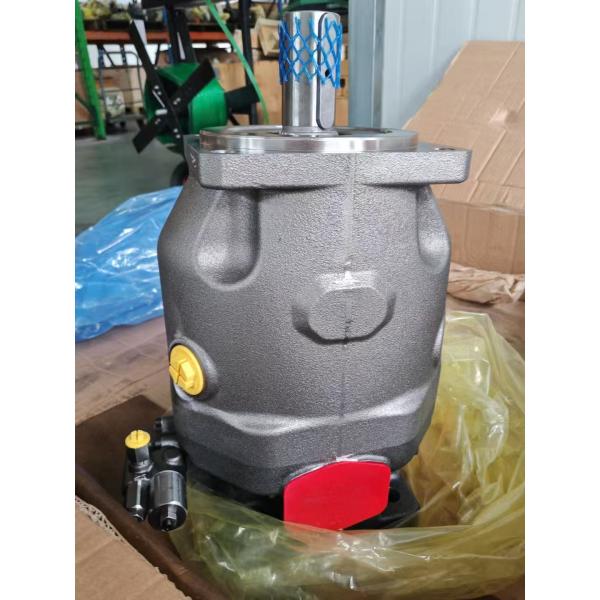

Rexroth A10VSO45 Axial Piston Pump 280 Bar Hydraulic Motor

Brand Name : Rexroth

Model Number : A10VSO45DFLR/31R-PKC62N00 A10VSO45DFLR/31R-PKC62N00 A10VSO45DFLR/31R-PKC62N00 A10VSO45DFLR/31R-PPA12N00 A10VSO45DFLR/31R-PPA12N00

Certifiion : ISO

Place of Origin : German

MOQ : 1

Price : 2

Payment Terms : ,Western Union,T/T,D/P,D/A,L/C

Supply Ability : 100

Delivery Time : 2 weeks

Packaging Details : Wooden crate

Drive Mode : Mechanically Driven Pump

Pressure Rating : 280 bar

Seal Type : Lip Seal

After Serive : online video

Rotation : 0.2-cp can be transported in reverse

Appliion : Mobile and Industrial Hydraulics

Material : Cast Iron

Speed : 3 Speed Settings

Certifisaarion : ISO9001

Type : Axial Piston Pump

Contact Now

Rexroth A10VSO45DFLR/31R Hydraulic Pump - German Axial Piston Pump Motor
Product Specifiions
Drive Mode Mechanically Driven Pump
Pressure Rating 280 bar
Seal Type Lip Seal
Rotation 0.2-cp can be transported in reverse
Appliion Mobile and Industrial Hydraulics
Material Cast Iron
Speed 3 Speed Settings
Certifiion ISO9001
Type Axial Piston Pump
Product Details
The Rexroth A10VSO45DFLR/31R is a high-performance German axial piston pump motor designed for demanding hydraulic appliions. This variable displacement pump features precise flow control and robust construction for reliable operation in industrial and mobile hydraulic systems.
Contact: WhatsApp +85267220981 | Email yli97584@gmail.com
Brand: Rexroth | Origin: Fujian, China
Warranty: 12 Months | Quality: 100% Tested
Features: Long Life, Low Noise | Power: Hydraulic
Rexroth A10VSO45 Axial Piston Pump 280 Bar Hydraulic Motor
Compatible Models
A10VSO10DR/52R-PPA14N00
A10VSO18DR/31R-PPA12N00
A10VSO18DR/31R-PPA12K01
A10VSO18DFR1/31R-PPA12N00
A10VSO18DFLR/31R-PPA12N00
A10VSO28DR/31R-PPA12N00
A10VSO28DFR1/31R-PPA12N00
A10VSO28DFLR/31R-PPA12N00
A10VSO45DR/31R-PPA12N00
A10VSO45DFR1/31R-PPA12N00
A10VSO45DFLR/31R-PPA12N00
A10VSO71DR/31R-PPA12N00
A10VSO71DFR1/31R-PPA12N00
A10VSO71DFLR/31R-PPA12N00
A10VSO100DR/31R-PPA12N00
A10VSO100DFR1/31R-PPA12N00
A10VSO100DFLR/31R-PPA12N00
A10VSO140DR/31R-PPB12N00
A10VSO140DFR1/31R-PPB12N00
A10VSO140DFLR/31R-PPB12N00
Frequently Asked Questions
What is the A10VSO45 series pump?
The A10VSO45 is a variable displacement axial piston pump with a swashplate design, designed for open-circuit hydraulic systems. It delivers flow proportional to drive speed and displacement, with stepless flow adjustment via swashplate angle control. Key features include high efficiency, low noise, and a compact design with ISO/SAE mounting flanges.
What are the technical specifiions?
  • Displacement: 45 cc/rev (other sizes: 28, 71, 100, 140 cc/rev available)
  • Pressure Ratings:
    • Nominal pressure: 280 bar (28 MPa)
    • Peak pressure: 350 bar (35 MPa)
  • Control Options: DG (direct actuation), DR (pressure control), DFR (pressure/flow control), DFLR (pressure/flow/power control), and more
  • Speed Range: Up to 1,500 rpm (varies with model and fluid viscosity)
What appliions is it suited for?
The pump is widely used in:
  • Industrial machinery (e.g., presses, plastic injection molding)
  • Mobile hydraulics (construction, mining equipment)
  • Marine and aerospace systems due to its high power-to-weight ratio and reliability
How does the variable displacement mechanism work?
Flow is adjusted by changing the swashplate angle via an external control mechanism (e.g., pressure compensator or manual adjustment). This allows the pump to deliver only the required flow, reducing energy consumption.
What maintenance is required?
  • Regularly check for leaks, abnormal noise, or pressure fluctuations
  • Monitor fluid cleanliness (ISO 4406 Class 18/16/13 recommended)
  • Replace seals and bearings per the manufacturer's service intervals
What are common troubleshooting steps for flow/pressure issues?
  • Flow instability: Check for air ingress, clogged filters, or worn control pistons
  • Pressure drops: Inspect relief valves or compensator settings
  • Noise: Verify alignment of the pump and motor shafts, and ensure fluid viscosity is within specs
